Those old electronic circuit boards in your drawer are far from useless. They’re packed with precious metals like gold particles. As e‑waste piles up in landfills, recycling waste PCBs offers a simple way to reduce your environmental impact and even earn a little extra cash.

Discover how turning dusty electronic devices into valuable resources can benefit you and help save from environmental damage.

Reasons to Recycle Circuit Boards

A. Environmental Impact

Recycling PCBs (Printed Circuit Boards) offers significant environmental advantages. By reprocessing these electronic components, you’re actively reducing e-waste in landfills. This practice helps conserve natural resources and minimizes the need for raw material extraction.

Moreover, recycling PCBs prevents harmful materials like lead and mercury from leaching into soil and water sources.

In addition to recycling PCB boards, it’s important to dispose of other electronic devices that contain hazardous materials properly.

For example, light bulbs, especially CFLs, require careful handling due to their mercury content. Learn more about how to dispose of light bulbs safely to further reduce your environmental impact.

Environmental Benefit	Impact
Reduced landfill waste	Decreases e-waste volume
Resource conservation	Saves energy and raw materials
Pollution prevention	Minimizes toxic substance release

B. Financial Gains

You can recover valuable metals from circuit boards like gold, silver, and copper, which can be sold or reused in new electronics. This process creates job opportunities in the recycling industry and stimulates the circular economy.

• Cost savings for manufacturers
• Revenue generation from recovered recycled materials
• Job creation in the recycling technologies sector

C. Legal Requirements

Many countries have implemented strict e-waste management regulations. By recycling PCBs, you ensure compliance with these laws, avoiding legal penalties and issues.

It’s a proactive approach to meeting environmental standards and corporate social responsibility goals.

Now that you understand the importance of PCB recycling, let’s explore the challenges involved in this process.

Challenges in PCB Recycling

A. Material Complexity

When it comes to recycling circuit boards, you’ll face a significant challenge in dealing with the complex mixture of materials. Circuit boards contain a variety of components, including:

• Base Metals (copper, gold, silver, palladium)
• Plastics
• Glass fibers
• Ceramic materials

This diverse composition makes it difficult to separate and recycle each material effectively. Here’s a breakdown of the typical composition of a green board:

Material	Percentage
Plastics	30%
Copper	30%
Glass	20%
Other metal composition	20%

B. Toxic Components

You’ll need to be cautious when recycling PCBs due to the presence of hazardous substances. These include:

• Lead from solder
• Mercury from switches and relays
• Cadmium from plating
• Brominated flame retardants

Handling these primary materials requires specialized equipment and processes to ensure environmental and worker safety.

C. Tech Constraints

As you delve into PCB recycling process, you’ll encounter technological challenges:

1. Separation techniques: Efficiently isolating different materials
2. Smelting processes: Recovering precious metals from circuit boards without losing value
3. Chemical treatments: Safely extracting hazardous substances

These limitations can impact the cost-effectiveness and environmental sustainability of your recycling efforts.

D. Cost-Effectiveness

You might find that the economic aspect of PCB recycling presents its own set of challenges:

• High initial investment in specialized equipment
• Fluctuating market prices for recovered materials
• Labor-intensive processes increasing operational costs

Balancing these factors with the potential revenue from recovered materials is crucial for sustainable recycling operations.

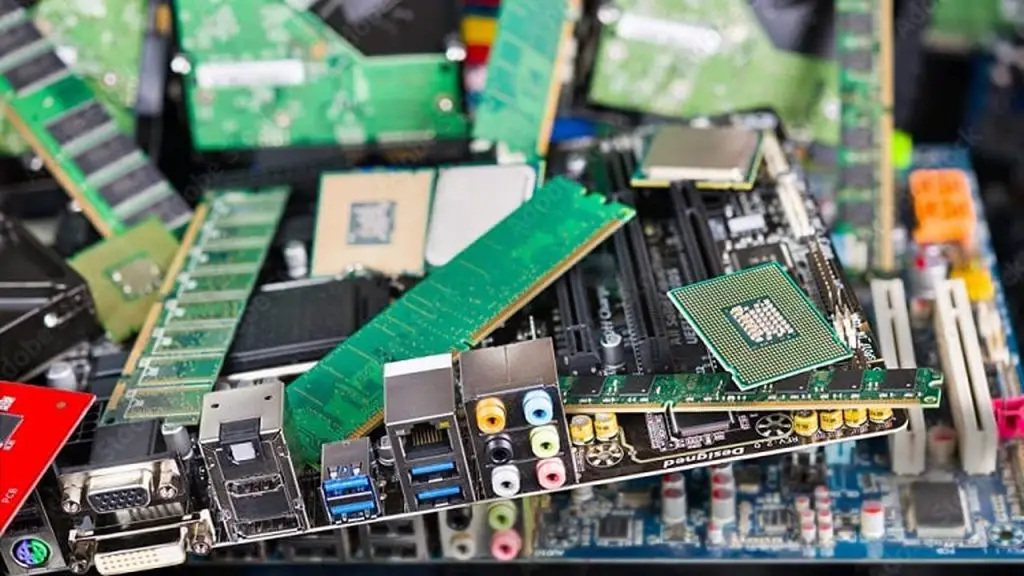

How to Recycle Circuit Boards: PCB Recycling Techniques

A. Heat-Based Recovery

Thermal recovery process is an efficient method for recycling circuit boards. This process involves using high temperatures to separate different components of the PCB. Here’s how you can recycle circuit boards using thermal recovery process:

1. Preparation: Remove any large metal components or batteries from the PCB.
2. Shredding: Break down the electronic circuit boards into smaller pieces.
3. Heating: Place the shredded PCB material in a furnace at temperatures around 1000°C.
4. Separation: As the material melts, different components separate based on their melting points.
5. Collection: Collect the separated materials for further processing.

Material	Melting Point (°C)	Recovery Method
Copper	1084	Smelting
Gold	1064	Refining
Silver	962	Electroplating
Plastics	100-200	Incineration

B. Chemical Extraction

This process uses various chemicals to dissolve and separate different components. Here’s how you can use chemical recovering:

1. Preparation: Crush the PCBs into small particles.
2. Leaching: Immerse the crushed material in chemical solutions like acids or cyanide.
3. Separation: Different metal ions dissolve at varying rates, allowing for separation.
4. Precipitation: Use chemical reactions to precipitate the desired base metals.
5. Filtration: Separate the solid precipitates from the liquid solution.

C. Mechanical Separation

Physical recovering is a mechanical method that doesn’t involve heat or chemicals. This process is often used as a pre-treatment before thermal or chemical recovering. Here’s how you can recycle electronic circuit boards using physical recovering:

1. Disassembly: Manually remove large components like capacitors and batteries.
2. Crushing: Use machinery to break down the PCBs into smaller pieces.
3. Screening: Separate materials based on size using vibrating screens.
4. Magnetic separation: Use magnets to remove ferrous metals.
5. Eddy current separation: Separate non-ferrous metals from non-metals.

By understanding these three methods, you can choose the most suitable approach for recycling your waste circuit boards. Each method has its advantages, and often a combination of techniques is used for optimal recovery of valuable materials.

Where to Recycle Circuit Boards?

There are numerous recycling centers and private recycling companies that specialize in electronic waste recycling, including waste circuit boards. Here are a few examples of reputable services:

• Cohen Recycling: A leading recycling company with state-of-the-art processing centers that handle circuit boards responsibly. They emphasize environmentally responsible disposal and can recycle a variety of electronic components.
• Specialty Metals: This company buys and recycles electronic circuit boards, offering payment based on the value of the precious metals recovered, such as gold, silver, and copper. They accept a wide range of circuit boards, from computer motherboards to telecommunications equipment.
• All Green Electronics Recycling: A certified electronic scrap recycler offering nationwide pickup services. They focus on environmentally responsible recycling practices and ensure that hazardous materials are handled safely.

Additionally, you can search for local recycling options by typing “circuit board recycling near me” into your search engine. Many communities have dedicated e-waste recycling programs or facilities through local waste management services.

It’s important to choose a certified recycler to ensure that your circuit boards are handled properly and that hazardous materials are disposed of safely. The U.S. Environmental Protection Agency (EPA) recommends using certified electronics recyclers, as they meet high environmental standards for safe recycling solution.

You can find lists of certified recyclers through organizations like Sustainable Electronics Recycling International (SERI), which maintains a database of R2 certified facilities.

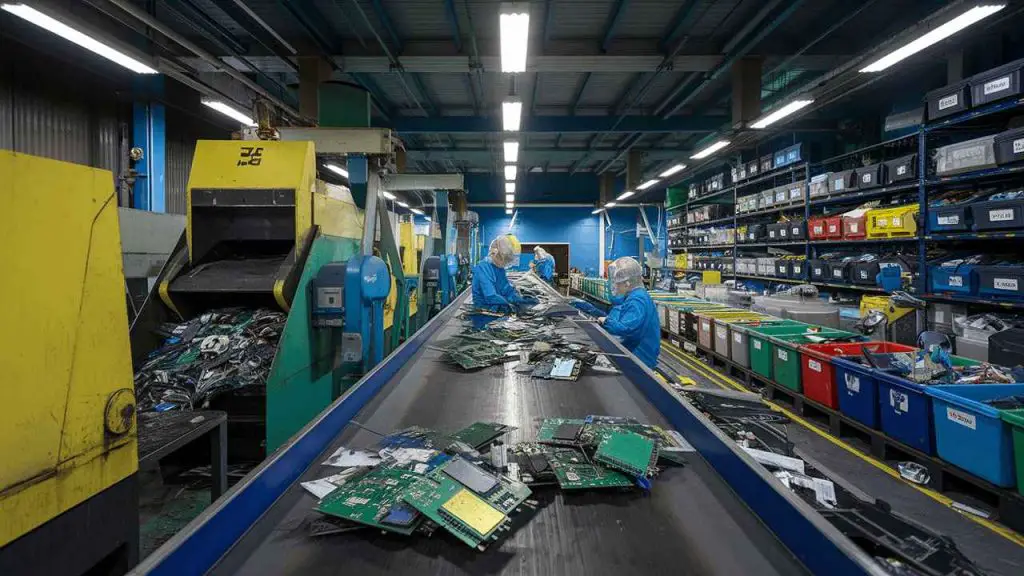

PCB Recycling Procedures

Recycling circuit boards is all about breaking them down and pulling out the useful materials inside. Here’s how it usually goes:

First, you’ve got to get all those tiny components off the board. This is typically done by drilling them out carefully, so you’re left with just the bare board.

Next, that board gets chopped up into small pieces. This makes it a lot easier to deal with in the steps that follow.

Since circuit boards are packed with different metals, the next job is to sort them out. Some metals, like iron, stick to magnets, so magnetic separators are used to pull those out. That leaves behind other metals, like copper or aluminum, which don’t stick to magnets.

There are also non-metallic components mixed in, like ceramics and fiberglass, and those get sorted out separately too.

Once all this cutting and sorting is done, recycling companies take it from there, using the following 3 main methods to process the materials further and extract what’s valuable.

A. Pyrometallurgical Recovery Method

The pyrometallurgical process is a high-temperature method you can use to recycle circuit boards. This process involves burning the PCBs at temperatures exceeding 1000°C to extract valuable metals. Here’s what you need to know:

• Efficiently recovers precious metals like gold and silver
• Requires less toxic chemical processing compared to other methods
• Produces toxic fumes, necessitating proper air filtration systems

Pros	Cons
High metal recovery rate	High energy consumption
Quick processing time	Potential environmental pollution hazards
Suitable for large-scale operations	Loss of some valuable materials

B. Hydrometallurgical Technique

You might prefer hydrometallurgy if you’re looking for a more environmentally friendly approach. This method uses aqueous solutions to extract metals from PCBs:

1. Crushing and grinding of circuit boards
2. Leaching with acids or other solvents
3. Separation and purification of metals

Hydrometallurgy offers better control over the recycling process and is particularly effective for recovering copper from PCBs.

C. Electrochemical Processing & Recovery

The electrochemical process is an advanced technique you can use to recycle circuit boards with high precision. It involves:

• Dissolving metals in an electrolyte solution
• Applying an electric current to selectively deposit pure metals
• Recovering a wide range of metals, including copper, gold, and palladium

Electrochemical Processing is particularly effective for e-waste recycling and allows for the recovery of high-purity metals. However, it requires specialized equipment and expertise.

Now that you understand these processes, let’s explore how to recycle the recovered copper from printed circuit boards.

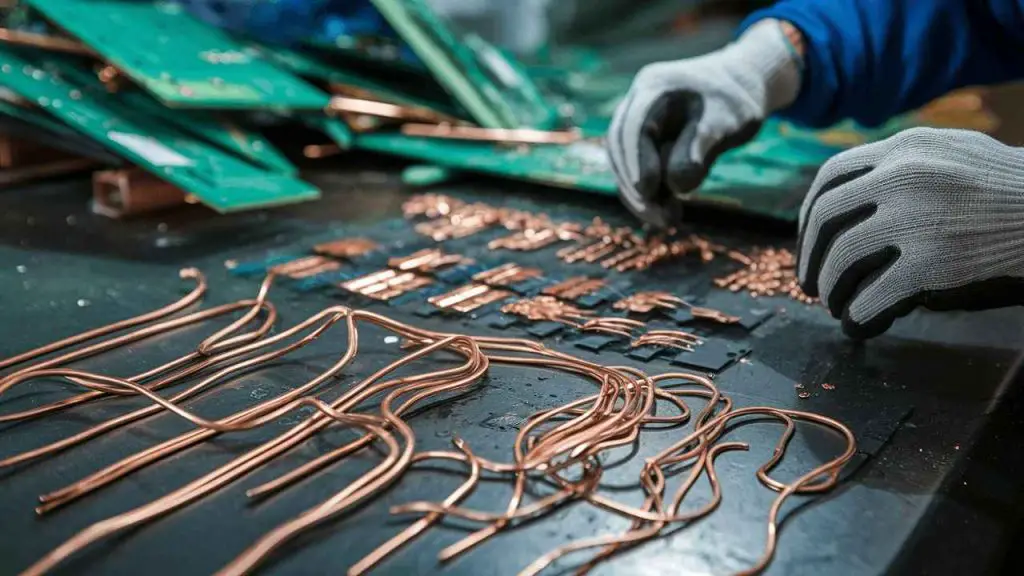

Recycling Copper from PCBs

A. Trimming Waste

Edge trim, a byproduct of PCB manufacturing, contains valuable copper that can be recycled. You can recycle this copper-rich material through a process called electrowinning.

In this method, you apply an electric current to the edge trim in an electrolyte solution, causing the copper to separate and deposit onto cathodes.

Process Step	Description
Preparation	Shred edge trim into small pieces
Electrolysis	Submerge in electrolyte solution and apply current
Collection	Copper deposits on cathodes
Purification	Melt and refine collected copper

B. Wastewater Sludge Treatment

Wastewater sludge from PCB manufacturing often contains copper particles. You can recover this heavy metal copper through a multi-step process:

1. Dewater the sludge
2. Dry the remaining material
3. Incinerate to remove organic materials and compounds
4. Leach copper using acids
5. Extract copper through electrowinning or cementation

C. Used Basic Etching Solution

Etching solutions used in PCB manufacturing become saturated with copper over time. You can recover this copper through:

• Chemical precipitation: Add a reducing agent to precipitate copper
• Electrowinning: Apply current to deposit copper on cathodes
• Ion exchange: Use resins to selectively remove copper ions

D. HAL Process Residue

Hot Air Leveling (HAL) is a PCB finishing process that leaves copper-rich dross. You can recycle this dross by:

1. Crushing and sieving to remove impurities
2. Melting in a furnace to separate copper from other materials
3. Casting the molten copper into ingots for reuse

By implementing these recycling methods, you can effectively recover copper from various PCB manufacturing processes, contributing to sustainable electronics production and reducing e-waste.

Is PCB Recycling Profitable?

You can indeed make money from recycling circuit boards, but it requires effort and knowledge. The profitability depends on the quantity and quality of boards you collect. Precious metals like gold, silver, and palladium can be extracted and sold. Here’s a quick breakdown:

Metal	Average Content per Ton	Potential Value
Gold	280-330 grams	$15,000-$18,000
Silver	900-1,000 grams	$500-$600
Copper	180-210 kg	$1,000-$1,200
